microTCA Chassis

Our standard compliant MicroTCA chassis are designed to meet your exact requirements - from standard 19" rack-mount technology to custom designs inlcuding table-top chassis. Depending on the use case our MicroTCA chassis solutions offer redundant or non-redundant management and data switching capabilities as well as single or n+1 power configurations. Designed to exceed the thermal envelope as defined by the MicroTCA specification our solutions also provide exceptional cooling capabilities. For a quick comparison, please refer to the MTCA.0 and MTCA.4 Chassis Overview. Not shown on this page are our custom and bespoke designs we have created to fulfill special demands of our customers. Please contact us in case you are invested in this kind of service.

Management & Data Switching

Any standard compliant MicroTCA system is managed by a MicroTCA Carrier Hub (MCH). Besides the central system management for any component in a MicroTCA system, the MCH also provides central switching functionality for the data fabrics, creating a single star (non-redundant) or dual star (redundant) switching topology. All NAT-MCHs are MicroTCA Carrier Hubs in the form factor of either a single or double width, mid- or full-size Advanced Mezzanine Card (AMC). Any MCH comprises of a base module and numerous optional daughter cards which can be mounted onto the base module. While the base modules provide the MicroTCA management and data switching for the base fabric, the daughter cards provide clock distribution functions as well as data hub functions (switches for fat pipe fabrics). Both the base modules as well as the data hubs provide uplink ports. Comprehensive on-board firmware and front panel visualization of system status down to the single FRU make our MCHs the ideal choice for your MicroTCA system. Our new 4th generation of NAT-MCH, the NAT-MCH-G4 family of products, provides · enhanced clocking options including GPS, PTP/SyncE · improved switching (e.g. 10GbE base fabric, 40GbE or PCIe gen4+5 fat pipe) · upgraded uplink options, both copper and fibre, for base fabric, fat pipe (100GbE, optical PCIe x16) · new user interfaces Our NAT-MCH-G4 Overview provides a quick insight into the NAT-MCH-G4 family. For a detailed description, please refer to the product page and the documentation which is linked there. If you are looking for a replacement product of the expiring 3rd generation NAT-MCH family, this table lists all important dates regarding LTB and LTS, as well as the successor for every single NAT-MCH Gen3 card.

MicroTCA Power Modules

Our product range of intelligent power modules for MicroTCA include various AC/DC and DC/DC converters at different input voltage and total power ratings. For an overview of our products, please refer to the Power Module Overview. Not shown on this page are our custom and bespoke designs we have created to fulfill special demands of our customers. Please contact us in case you are invested in this kind of service.

AMC FPGA Boards

Our range of versatile AMC FPGA boards are designed to meet the exact requirements regarding flexibility, efficiency and processing power for MicroTCA and ATCA based applications. Based on user programmable logic resources by FPGAs from AMD® (Xilinx®), and Intel® (Altera®), our products provide compute resources for appliances from embedded and industrial up to top edge communication. Not shown on this page are our custom and bespoke designs we have created to fulfill special demands of our customers. These include both hardware and firmware designs as well as IP core developments for FPGA based products. Please contact us in case you are invested in this kind of service.

AMC CPU Boards

Our range of versatile AMC CPU boards are designed to meet the exact requirements regarding flexibility, efficiency and processing power for MicroTCA and ATCA based applications. Based on processors from NXP®, Intel®, and ARM®, our products provide compute resources for appliances from embedded and industrial up to top edge communication. Not shown on this page are our custom and bespoke designs we have created to fulfill special demands of our customers. These include both hardware and firmware designs as well as IP core developments for FPGA based products. Please contact us in case you are invested in this kind of service.

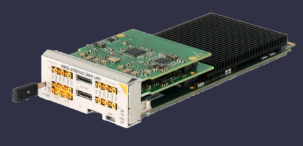

Interface cards (I/O)

Timing

Auxiliaries
